stackable 51.2V 100Ah Lifepo4 Battery Long Lasting Rechargeable Battery Suitable for Electric Vehicles Solar Energy and Backup Power Systems

Brand Name : GBS

Model Number : GBSFP51100T

Certification : CE, IEC, UN38.3 etc

Place of Origin : CHINA

MOQ : 1pcs

Price : 480.00 USD

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10000 pcs per month

Delivery Time : 30 days

Packaging Details : wooden boxes

Battery capacity : 100Ah

Voltage : 51.2V

Bms Protection : Included, With Communication RS232/485

Cell : Lifepo4 Battery Cell

Warranty : 5 Years

Standard Discharge Rate : 1C

Communication : CAN/RS485/RS232/Dry Contact

Package : Special Carton for Dangerous Goods

Shape : Prismatic

Cycle Life : More Than 6000 Times

Contact Now

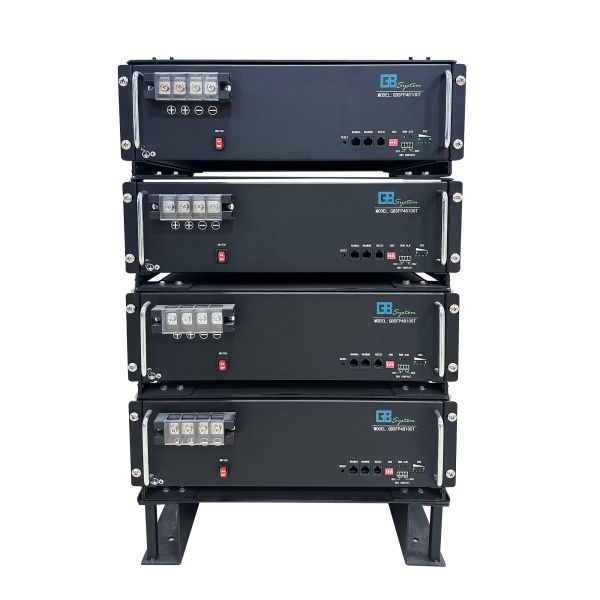

Stackable 51.2V 100Ah LiFePO4 Battery
Stackable 100Ah Prismatic Lithium Battery 51.2V Pack with CAN/RS485/RS232 communication interfaces, designed for long-lasting performance in electric vehicles, solar energy systems, and backup power applications.
stackable 51.2V 100Ah Lifepo4 Battery Long Lasting Rechargeable Battery Suitable for Electric Vehicles Solar Energy and Backup Power Systems
Technical Parameters
Model 16S
Anode Material LiFePO4
Nominal Voltage 51.2Vdc
Cycle Life >6000 cycles
Charge Voltage 56.8Vdc
Cutoff Discharge Voltage 40.5Vdc
Max Charge/Discharge Current 100A / 100A @25ºC
Installation Method Rack mounted
Weight 40kg
Dimensions (W×D×H) 442mm × 415mm × 133mm
Self Discharge @25ºC <5% in 90-day storage
Communication RS485, CAN
Protection Functions Over temperature, over current, short circuit, over discharge, etc.
Operating Temperature Charge: 0ºC ~ 65ºC; Discharge: -20ºC ~ 65ºC
Relative Humidity 5% ~ 95%
Altitude 0 ~ 3600m
Key Features
  • State monitoring: Supports voltage, temperature, and overall voltage/current detection with SOC and SOH calculation
  • Integrated BMS and bidirectional DC/DC: Supports mixing and matching of different batteries
  • Parallel power expansion: Supports up to 32 sets in parallel with maximum power ≤ 24kW
  • Alarm management: Supports abnormal alarms for overvoltage, undervoltage, overcurrent, and temperature extremes
  • Comprehensive protection: Overvoltage, undervoltage, overcurrent, short circuit, temperature, cell failure, and hardware failure protection
  • Intelligent anti-theft function with sound and light alarms
  • Real-time cell balancing function
  • Information reporting via CAN/RS485 interface
  • Smart design with Bluetooth APP, wireless 4G communication, and gyroscope interfaces
  • Easy maintenance with multiple activation methods and forced power-off functions
  • Maintenance-free operation during use
  • Long lifespan: 2-3 times longer than ordinary lead-acid batteries
Working Modes
This product features bidirectional DC/DC power conversion for charging and discharging. In parallel and mixed battery scenarios, each pack monitors external bus voltage and adaptively adjusts charging/discharging status through CAN communication.
Discharge Output Modes
  • Mode 1: Self-managed Constant Voltage Discharge
  • Mode 2: Power Management Constant Voltage Discharge
  • Mode 3: Battery Characteristic Discharge
Interface Specifications
No. Name Screen Printing Function Description
1 Protective Grounding GND M6 Screw
2 Dry Contact Output DO1 DO2 Alarm dry contact point, configurable
3 Dry Contact Input DI Boost mode control and wake-up
4 Reserved Extension Interface RESERVED Reserved extended serial port
5 Communication Interface COM_IN Used for information reporting and cascading communication. Uses double-layer RJ45 terminals.
6 Communication Output COM_OUT Communication output interface
7 Indicator Lights RUN, ALM, CHG, DCHG, SOC Run, Alarm, Charge, Discharge, and State of Charge indicators
8 Manual Control MANUAL ON/OFF Maintenance button (contact button)
9 Power Terminals +, - Positive and negative battery interfaces with M6 screws. Recommended wire diameter: 25mm² (minimum 16mm²). Torque requirement: 4 N·m
Support and Services
Our technical support team provides expert guidance on installation, maintenance, and troubleshooting to ensure optimal system operation. We offer regular maintenance checks, performance monitoring, and battery capacity assessments to maximize your system's performance.
Packing and Shipping
Product Packaging: Each battery is individually wrapped in protective material and placed in sturdy cardboard boxes for safe delivery.
Shipping: Orders are processed and shipped within 1-2 business days. Standard and expedited shipping options available with tracking numbers provided.
Frequently Asked Questions
What is the brand name of the energy storage batteries product?
The brand name is GBS.
What is the model number of the energy storage batteries?
The model number is GBSFP51100T.
Where is the batteries product manufactured?
The product is manufactured in China.
Are the GBS energy storage batteries suitable for ESS?
Yes, the GBSFP51100T model is suitable for home Energy Storage Systems (ESS).
